UltraTec PD1 Foetal Pocket Doppler | Four Square Healthcare

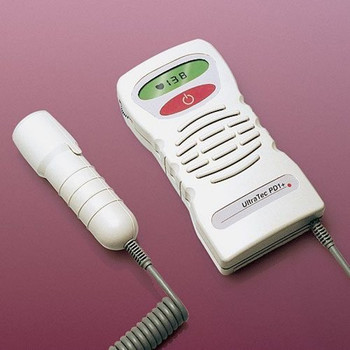

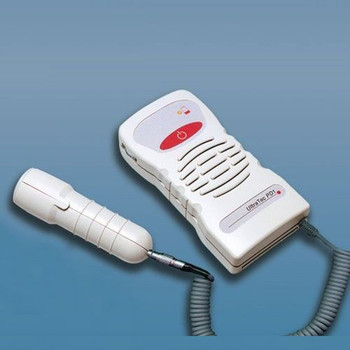

UltraTec PD1 Foetal Pocket Doppler

SKU:
FS030
MPN:
100-0014-00
Availability:
Usually Dispatched in 2 - 3 Working Days
£279.41
Inc. VAT
£232.84 Ex. VAT

Description

The UltraTec PD1 is a small, lightweight, high sensitivity pocket doppler. Its 2MHz fetal doppler probe is ideal for use by general practitioners or midwives for routine antenatal fetal detection. The fetal signal is available to the user via the built in loudspeaker or optional headset with output level controlled by edge mounted volume control.

Features

  • Compact and lightweight pocket Doppler for routine antenatal foetal detection
  • Ideal for use by general practitioner or midwife
  • High-sensitivity 2MHz narrow-beam transducer
  • Internal signal processing minimises noise artefacts
  • Audio foetal heart signals are available via the built-in loudspeaker or optional headset
  • Rotary volume control
  • Easy to clean unit and transducer
  • Powered by a standard 9v battery giving in excess of 9 hours continuous operation
  • Battery saver system
  • Supplied with battery, carry case and operating instructions

Specifications

Frequency 2 MHz continuous wave

Probe

2 crystal narrow beam
Audio Response 300Hz to 1KHz ( 4KHz with vascular)
Range 50 to 210 bpm
Power output

<15m W/cm2 SATA

Indicators Yellow battery low LED
Heart Rate Processing Digital multipoint autocorrelator
Control Rotary volume control and power on/of button
Headset Optional
Battery MN1604 (PP3) 9V Alkaline Manganese
Weight 295g typically, including probe
Size 150mm x 75mm









View AllClose

Warranty Information

3 Years Manufacturer Warranty
